Description

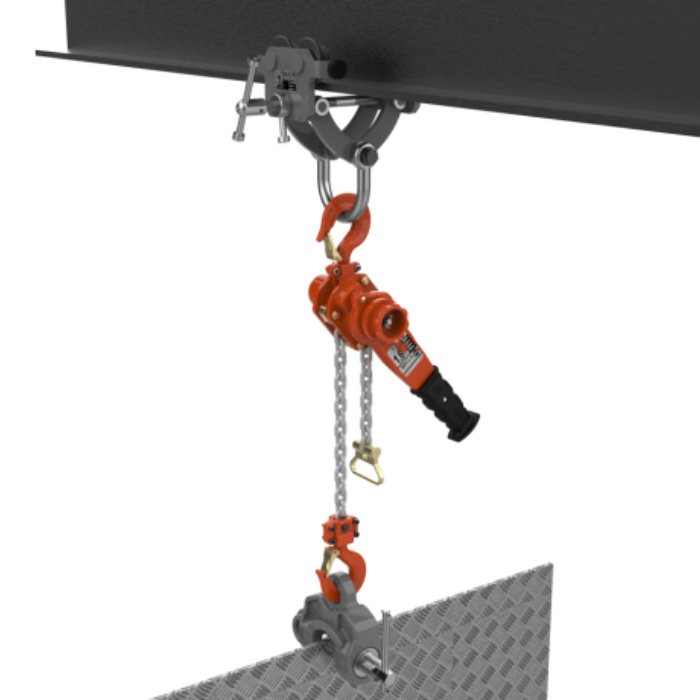

WH L4 Lever Hoist – Hackett Ratchet Lever Hoist

The Hackett WH L4 lever hoist meets and exceeds the
requirements of the following international standards:

British and European Standard BS EN13157:2004 + AI:2009
American Standard ASME B30.21-2014
Australian Standard AS1418.2-1997
South African Standard SANS 1636:2-2007
NORSOK R-002: 2017.
The design and specification of the William Hackett WH-L4 lever
hoist includes:
WORKING LOAD LIMIT RANGE: 800kg to 15 tonnes.
LIGHT LOAD CAPABILITY: the WH L4 is tested and
certified at 2% of the lever hoist rated capacity.
TWIN PAWL: double safety; fitted as standard.
SAFETY LATCHES: the WH L4 lever hoist top and bottom
hooks are fitted with heavy duty cast steel latches. The latch
and hook tips are integrated creating a strong and robust
hook closure.
HOOK OVERLOAD AND TRACEABILITY MARKS: hooks
have overload indicator marks either side of the hook throat
(500kg to 10t). Both top and bottom hooks are embossed
with a batch code, manufacturer’s mark and the working load
limit for full traceability and compliance to international
standards.
HOOK HOUSING: secured with socket head cap screws/hex
head bolts and nyloc locking nuts to allow full inspection.
FLEETING/CROSS HAULING: the WH L4 lever hoists are
tested and certified for fleeting or cross hauling applications
up to 45° from the vertical without deration.
LOAD CHAIN: the WH L4 lever hoists are fitted with load
chain that fully complies with international standard BS
EN818-7 Grade T (8).
TEMPERATURE RANGE: -20°C to +120°C
PROOF TESTED: 800kg to 10 tonne hoists are proof tested
to 1.5 times the Working Load Limit. 15 tonne hoists are
proof tested to 1.25 times the Working Load Limit.
OVERLOAD LIMITER: available as an option upon request.
TOP AND BOTTOM HOOK ADAPTORS: available as an
option upon request.
TRAVELLING END STOP: available as an option upon request.
MANUFACTURED AND PROOF TESTED in the U.K.
