WH C4 Chain Hoist – Hackett Manual Chain Block

WH C4 Chain Hoist – Hackett Manual Chain Block

From £123.85 - Guide Price

Hawk Lifting are proud Full Members of LEEA (Lifting Equipment Engineers Association)



**For alternate sizes & variations, please contact us

Description

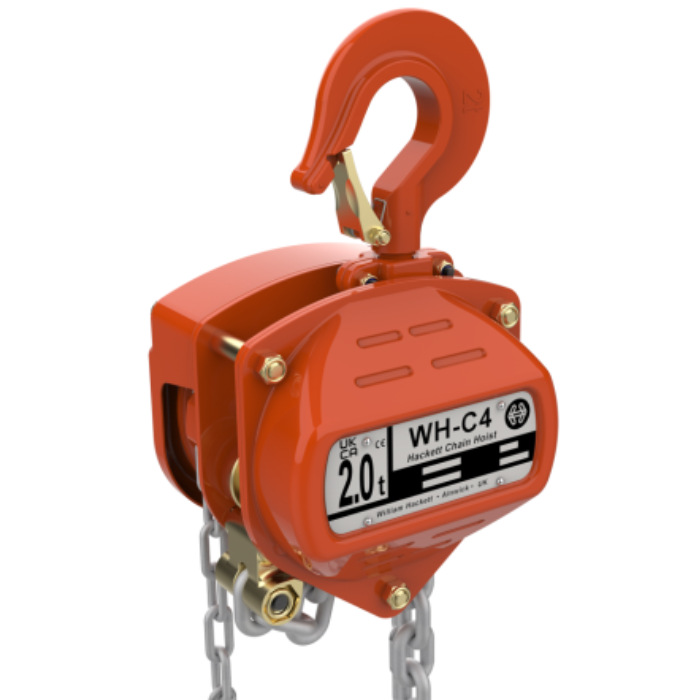

WH C4 Chain Hoist – Hackett Manual Chain Block



WH C4 Chain Hoist – Hackett Manual Chain Block meets and exceeds all of the necessary demands of the below internationally recognised standards:

  • British Standard BS EN13157:2004 + AI:2009
  • American Standard ASME B30.16-2014
  • Australian Standard AS1418.2-1997
  • South African Standard SANS 1594:2007
  • NORSOK R-002: 2017.

The design and specification of the William Hackett WH C4 chain hoist includes:

  • Large range of Working Load Limit options: 500kg to 50 tonnes.
  • LIGHT LOAD CAPABILITY: tested and certified at 2% of the chain hoist rated capacity.
  • TWIN PAWL: fitted as standard on each hoist.
  • SAFETY FACTOR: 4:1.
  • SAFETY LATCHES: hooks are fitted with made to last heavy duty cast steel latches. The latch and hook tip are integrated creating a strong and robust hook closure.
  • HOOK OVERLOAD AND TRACEABILITY MARKS: all hooks have overload indicator marks either side of the hook throat (500kg to 10t). Both top and bottom hooks are embossed with a  batch code, manufacturer’s mark and the working load limit for full traceability and compliance to international standards.
  • HAND CHAIN JOINER: a unique hand chain joiner is used as a quick and secure method of joining the hand chain.
  • HOOK HOUSING: secured with socket head cap screws/hex head bolts and nyloc insert locking nuts to allow full inspection.

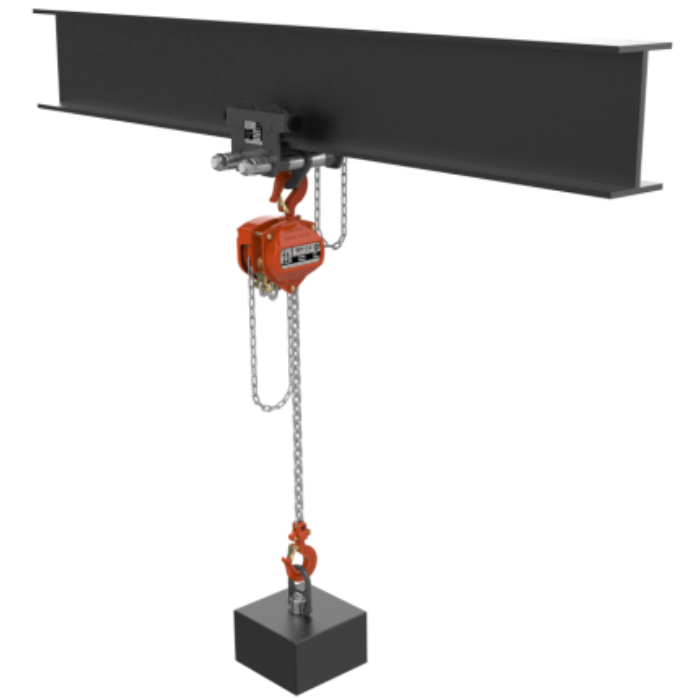

  • FLEETING/CROSS HAULING: independently tested (test report 2550-7615) for fleeting or cross hauling applications up to 45° from the vertical, all while maintaining the Working Load Limit.
  • LOAD CHAIN: each hoist comes fitted with load chain that is 100% compiant with international standard BS EN818-7 Grade T (8).
  • TEMPERATURE RANGE: Can be used anywhere from -20°C all the way up to +120°C.
  • PROOF TESTED: 500kg to 10 tonne hoists are prrof tested to 1.5 times the Working Load Limit.
  • 15 to 50 tonne hoists are proof tested to 1.25 times the Working Load Limit.
  • OVERLOAD LIMITER: available as an optional extra when requested.
  • MANUFACTURED: in the United Kingdom.

Hawk Lifting are proud Full Members of LEEA (Lifting Equipment Engineers Association)

View our full range of Manual Chain Blocks here



Additional information

Size

0.5t x 3m, 0.5t x 6m, 0.5t x 9m, 0.5t x 12m, 1t x 3m, 1t x 6m, 1t x 9m, 1t x 12m, 1.6t x 3m, 1.6t x 6m, 1.6t x 9m, 1.6t x 12m, 2t x 3m, 2t x 6m, 2t x 9m, 2t x 12m, 3.2t x 3m, 3.2t x 6m, 3.2t x 9m, 3.2t x 12m, 5t x 3m, 5t x 6m, 5t x 9m, 5t x 12m, 7.5t x 3m, 7.5t x 6m, 7.5t x 9m, 7.5t x 12m, 10t x 3m, 10t x 6m, 10t x 9m, 10t x 12m, 15t x 3m, 15t x 6m, 15t x 9m, 15t x 12m, 20t x 3m, 20t x 6m, 20t x 9m, 20t x 12m, 30t x 3m, 30t x 6m, 30t x 9m, 30t x 12m, 50t x 3m, 50t x 6m, 50t x 9m, 50t x 12m
