The Tractel man-riding pulley block is a versatile pulley that can be used for both man-riding applications and material lifting. This pulley block can be used with various other Tractel hoists and are suitable for temporary and permanent applications. You can be confident that you’ll be kept safe and secure when using this pulley block as it conforms to EN 1808 standards for man-riding, highlighting its quality and durability.
Tractel Man-Riding Pulley Block
Call for price - Guide Price
Description
About the Tractel Man-Riding Pulley:
| Code | Model | WLL (t) | Bottom of Groove Ø (mm) | Weight (kg) | Driven Cable Ø (mm) | Manual Cable Ø (mm) | Price (£) |
| 192769 | EPC1.6-8/9 /II | 1.6 | 171 | 3.7 | 8 | 9 | 411 |
| 192899 | EPE1.6-8/9 /II | 1.6 | 171 | 3.7 | 8 | 9 | 345 |
| 192779 | EPF1.6-8/9 /II | 1.6 | 171 | 3.5 | 8 | 9 | 368 |
| 192909 | EPL1.6-8/9 /II | 1.6 | 171 | 3.5 | 8 | 9 | 340 |
| 192789 | EPA1.6-8/9 /II | 1.6 | 171 | 2.9 | 8 | 9 | 325 |
| 192799 | EPC2.4-10/12 /II | 2.4 | 196 | 6.4 | 10 | 12 | 543 |
| 192919 | EPE2.4-10/12 /II | 2.4 | 196 | 6.4 | 10 | 12 | 450 |
| 192809 | EPF2.4-10/12 /II | 2.4 | 196 | 5.9 | 10 | 12 | 485 |
| 192929 | EPL2.4-10/12 /II | 2.4 | 196 | 5.9 | 10 | 12 | 429 |
| 192819 | EPA2.4-10/12 /II | 2.4 | 196 | 5 | 10 | 12 | 426 |
| 192829 | EPC4.8-14/16 /II | 4.8 | 177.4 | 14.8 | 14 | 16 | 802 |
| 192939 | EPE4.8-14/16 /II | 4.8 | 177.4 | 14.8 | 14 | 16 | 663 |
| 192839 | EPF4.8-14/16 /II | 4.8 | 177.4 | 14.1 | 14 | 16 | 731 |
| 192949 | EPL4.8-14/16 /II | 4.8 | 177.4 | 14.1 | 14 | 16 | 642 |
| 192849 | EPA4.8-14/16 /II | 4.8 | 177.4 | 12.2 | 14 | 16 | 645 |

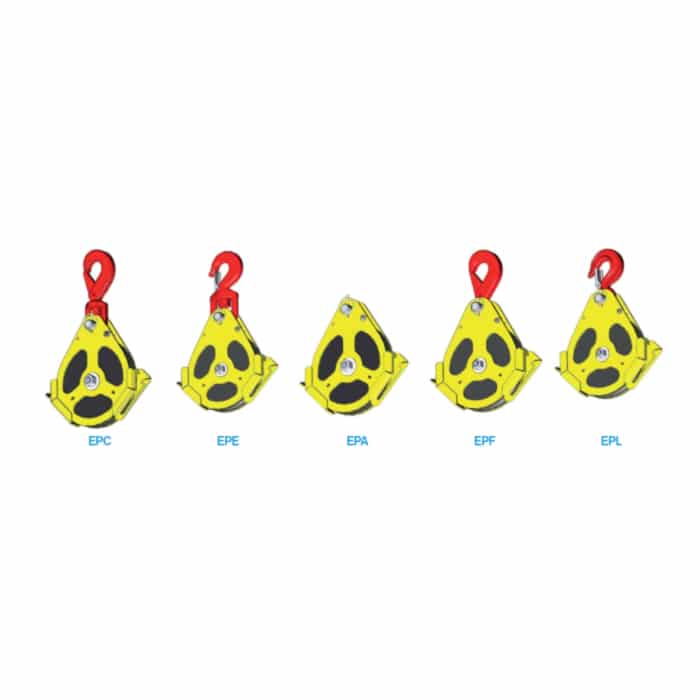

- EPA, EPC, EPE, EPF and EPL pulleys are designed for both man-riding and materials handling applications.
- Compatible for use with various other Tractel hoists they are especially suitable for temporary applications
where a quick installation is required. - Safety:
• Conforming to EN 1808 standards for man-riding
• Brand new casing added which works as a limit detection stop as well as a finger protection system - Easy to Use:
• New casing allows the pulley to be easily opened to fit the wire rope - Lightweight:
• Steel, polyamide sheave makes the pulley easy to manoeuvre - Versatile:
• Can be used for man-riding or materials with the same WLL, no need to change the pulley
More details on pulley blocks
Pulley blocks actually consist of a few different parts, including a hook, shackle, swivel, and sheaves. They are normally suspended by a hoisting rope or load chain where they can be used to lift items into different positions. Pulley block sheaves have grooves already present so that ropes or chains can be attached to be used for a variety of lifting applications.
All the details and specifications of this high quality Tractel pulley block can be found on this page. There are a variety of different models to choose from but, if you need any support deciding which to go for, we’d be more than happy to help. And, if you’d like to take a look at more similar products, please take a look at our full range of lifting equipment.
Additional information
| Model | EPC 1.6, EPE 1.6, EPF 1.6, EPL 1.6, EPA 1.6, EPC 2.4, EPE 2.4, EPF 2.4, EPL 2.4, EPA 2.4, EPC 4.8, EPE 4.8, EPF 4.8, EPL 4.8, EPA 4.8 |
|---|
