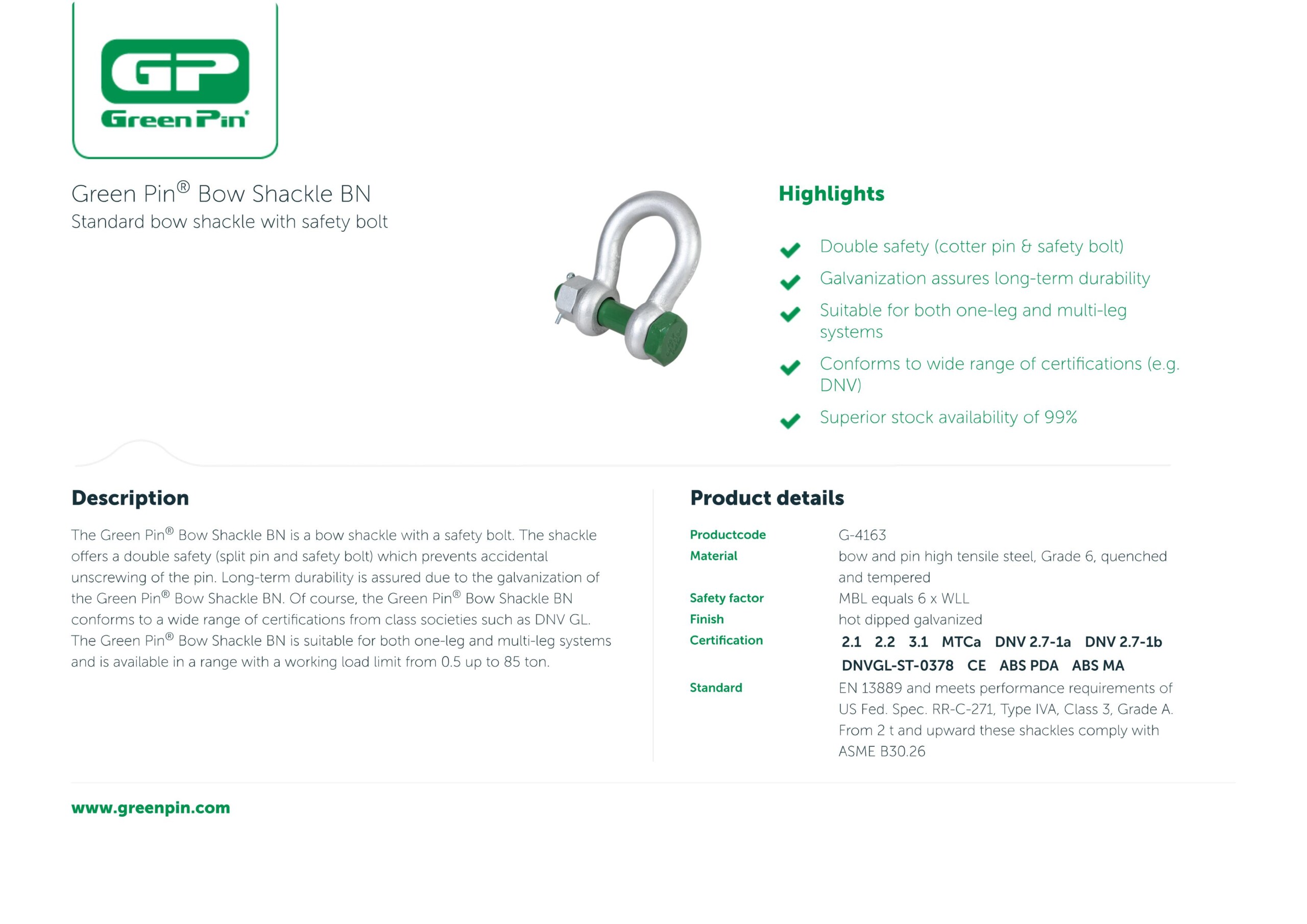

About the Green Pin Safety Bow Shackle – G4163 Safety Bolt & Nut Type Shackle

The Green Pin^® Bow Shackle BN is a bow shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin.

Long-term durability is assured due to the galvanization of the Green Pin^® Bow Shackle BN.

Of course, the Green Pin^® Bow Shackle BN conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin^® Bow Shackle BN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 0.5 up to 85 ton

Productcode: G-4163
Material: bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor: MBL equals 6 x WLL
Finish: hot dipped galvanized
Temp. range: -40°C up to +200°C
Standard: EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A. From 2 t and upward these shackles comply with ASME B30.26
Certification:
- 2.1
- 2.2
- 3.1
- MTCa
- DNV 2.7-1a
- DNV 2.7-1b
- DNVGL-ST-0378
- CE
- ABS PDA
- ABS MA
