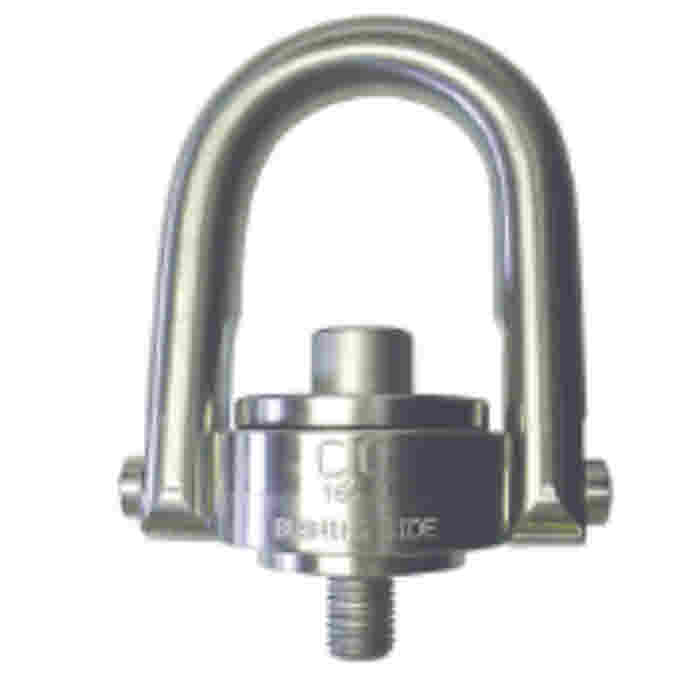

Crosby SS125M Stainless Steel Swivel Hoist Ring with Metric Thread
From £0.00 - Guide Price
Downloads
Description
About the Crosby SS125M Stainless Steel Swivel Hoist Ring with Metric Thread:
Crosby SS125M Stainless Steel Swivel Hoist Ring with Metric Thread
- All components are 316 stainless steel, except bolt retainers, which are made from 15-7 PH (UNS 15700) magnetic stainless steel.
- Available in capacities from 200 kg. to 22300 kg.
- Rated at 100 percent at 90 degree angle.
- Each product has a Product Identification Code (PIC) for material traceability, along with the Working Load Limit and the name Crosby or “CG” stamped into it.
- Individually proof tested to 2 times the Working Load Limit with certification.
- Fatigue Rated to 20,000 cycles at 1-1/2 times the Working Load Limit.
- Washer is color coded for easy identification (Silver – Metric thread).
- Bolt specification is 316 Stainless Steel socket head cap screw to ASTM F 837M (316).
- All threads listed are Metric (ASME/ANSI B18.3.1M).
- BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing below. Illustration shows meaning of each dimension given.
- NOTE: For Special Applications, see page 473.
- Frame 2 and larger are RFID EQUIPPED.
***Additional Sizes Available M48, M64, M72 & M90.
Hawk Lifting are proud to be one of the leading Authorised Distributors for Crosby
View our full range of Swivel Hoist Rings here
Additional information
| Weight | N/A |
|---|---|
| Size | M8 – 200kg, M10 – 250kg, M12 – 525kg, M16 – 950kg, M20 x 34mm – 1075kg, M20 x 32mm – 1500kg, M24 – 2100kg, M30 x 58mm – 2100kg, M30 x 42mm – 3500kg, M30 x 62mm – 3500kg, M36 – 5500kg, M42 – 6250kg, M48 – 6750kg, M64 – 11150kg, M72 – 15750kg, M90 – 22300kg |
