Crosby BH313 Weld-On Hook
From £56.07 - Guide Price
Description
About the Crosby BH313 Weld-On Hook:

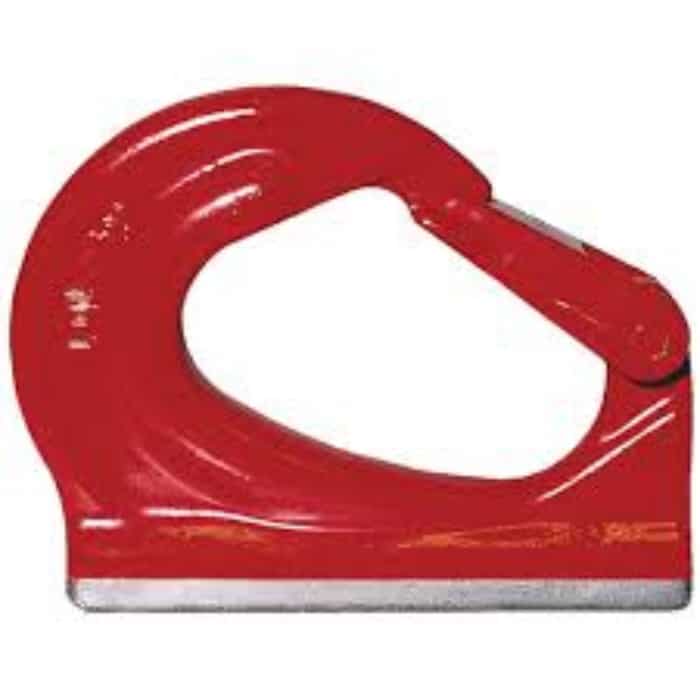

Crosby BH313 Weld-On Hook
- Choose from a large variety of sizes; with capacities between 1-10t.
- The hooks are made from Forged Alloy Steel.
- The BH313 is designed to be attached to mobile lifting equipment, providing a pick point for easy sling attachment.
- Offers a large weld pad
- These are perfect for earth moving machinery, mobile cranes etc.
- Heavy duty latch interlocks with the hook tip. Replacement latches available.
- Detailed installation and application instructions included with each hook.
BH-313 Weld-On Hooks
| Working Load Limit (t)* |
BH-313 Stock No. |
Weight Each (kg) |
Dimensions (mm) | Replacement Latch
Stock No. |
|||||||
| B | E | F | G | H | J | K | S | ||||
| 1 | 1029105 | .52 | 23.1 | 97.0 | 71.0 | 36.1 | 26.9 | 25.9 | 107 | 18.0 | 1092104 |
| 2 | 1029114 | .84 | 23.1 | 82.0 | 91.0 | 36.1 | 24.9 | 34.0 | 115 | 21.1 | 1092104 |
| 3 | 1029123 | 1.18 | 29.0 | 117 | 105 | 36.1 | 31.0 | 36.1 | 131 | 23.9 | 1092104 |
| 4 | 1029132 | 1.90 | 34.0 | 131 | 114 | 46.0 | 36.1 | 42.9 | 147 | 29.0 | 1092105 |
| 5 | 1029141 | 2.55 | 34.0 | 161 | 133 | 47.0 | 45.0 | 43.9 | 173 | 29.0 | 1092105 |
| 8 | 1029150 | 3.30 | 35.1 | 166 | 135 | 47.0 | 52.0 | 52.0 | 178 | 39.1 | 1092105 |
| 10 | 1029169 | 5.00 | 49.0 | 205 | 168 | 47.0 | 57.0 | 54.0 | 222 | 39.1 | 1092106 |
*Ultimate Load is 5 times the Working Load Limit.
Hawk Lifting are proud to be one of the leading Authorised Distributors for Crosby
View our full range of Weld on Lashing Points here
Additional information
| WLL | 1t, 2t, 3t, 4t, 5t, 8t, 10t |
|---|
