Description

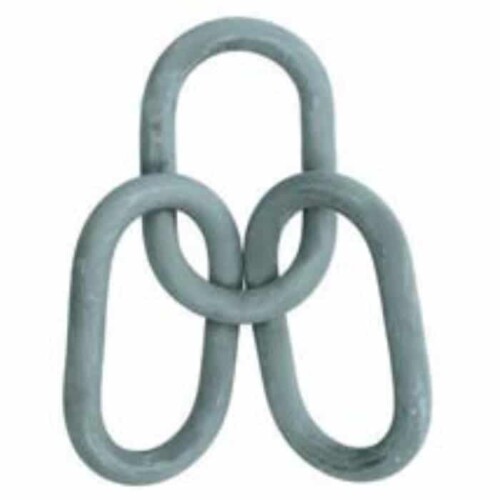

Crosby A342CT – Cold-Tuff Master Link
Crosby A342CT – Cold-Tuff Master Link
• Alloy Steel – Quenched and Tempered
• Individually proof tested at 2 times Working Load Limit with certification
• Finish is Inorganic Zinc Primer.
• Certified to meet charpy impact testing of 42J. min. avg. at – 20° C.
• Individually serialized and all certification shipped with each link
• COLD TUFF® master links are suitable for use at -46° C.
• Type Approval and certification in accordance with DNV 2.7-1 O fshore
Containers, DNV-OS-E101, and Rules for Certification of Lifting Appliances, and
are produced in accordance with DNV MSA requirements, including required
documents.
• Refer to page 88 for COLD TUFF® Shackles.
• Meets or exceeds all requirements of ASME B30.26 including identification,
ductility, design factor, proof load and temperature requirements. Importantly,
these fittings meet other critical performance requirements including fatigue life,
impact properties and material traceability, not addressed by ASME B30.26.
A-342CT Master Links
|
Size (mm) |
A-342CT Stock No. |
Working Load Limit (t)* |
Weight Each (kg) |
Dimensions (mm) | |||||
|
A |
B |
C |
D |
E |
Deformation Indicator | ||||
| 31.8W | 1261407 | 15.9 | 5.44 | 33.8 | 140 | 241 | 207 | 309 | 178 |
| 38.1W | 1261418 | 27.7 | 8.44 | 40.9 | 149 | 267 | 231 | 348 | 191 |
| 44.5 | 1261423 | 28.3 | 11.4 | 44.5 | 152 | 305 | 241 | 394 | 191 |
| 51.0 | 1261433 | 44.3 | 16.8 | 51.0 | 178 | 356 | 279 | 457 | 229 |
*Minimum Ultimate Load is 5 times the Working Load Limit.
Hawk Lifting are proud to be one of the leading Authorised Distributors for Crosby
View our full range of Chain Components here
Additional information
| Size | 31.8mm, 38.1mm, 44.5mm, 51mm |
|---|
